EM7345 150 Mbps DL 50 Mbps UL Data Rate LTE Network Type Sierra Wireless Cellular Device Providing Stable Wireless Connectivity

  • EM7345 150 Mbps DL 50 Mbps UL Data Rate LTE Network Type Sierra Wireless Cellular Device Providing Stable Wireless Connectivity
  • EM7345 150 Mbps DL 50 Mbps UL Data Rate LTE Network Type Sierra Wireless Cellular Device Providing Stable Wireless Connectivity
  • EM7345 150 Mbps DL 50 Mbps UL Data Rate LTE Network Type Sierra Wireless Cellular Device Providing Stable Wireless Connectivity
  • EM7345 150 Mbps DL 50 Mbps UL Data Rate LTE Network Type Sierra Wireless Cellular Device Providing Stable Wireless Connectivity
Place of Origin China
Marca Sierra Wireless
Model Number EM7345
Quantità di ordine minimo 100
Prezzo $7.00 - $16.00/pieces
Imballaggi particolari Originali, nuovissime.
Tempi di consegna 2-5 giorni lavorativi
Termini di pagamento L/C, T/T
Capacità di alimentazione 10000 pezzi/pezzi al giorno
Dettagli
Tecnologia di rete LTE Alimentazione elettrica 3,4–4,2 V
Modi di pagamento PayPal Bande di frequenza B1 (2100 MHz), B2 (1900 MHz), B3 (1800 MHz), B4 (AWS), B5 (850 MHz), B7 (2600 MHz), B8 (900 MHz), B1
Supporto del sistema operativo Windows 7/8, Linux Certificazioni FCC, CE, GCF, PTCRB, ecc.
GNSS Supporta GPS, A-GPS, Glonass Interfaccia principale USB 2.0
Lasciate un messaggio
Descrizione di prodotto

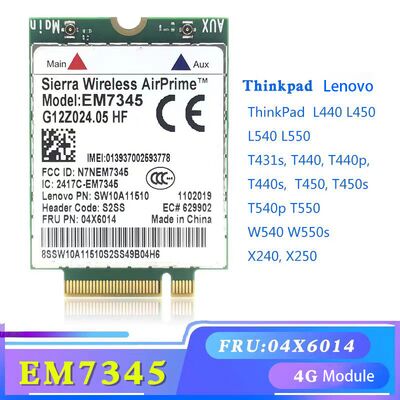

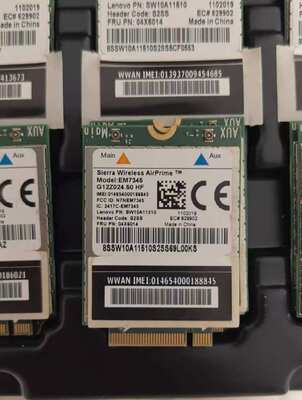

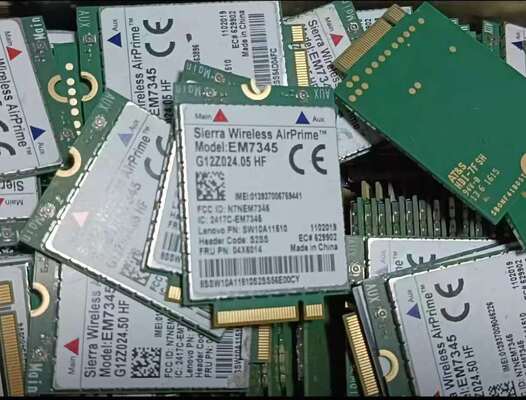

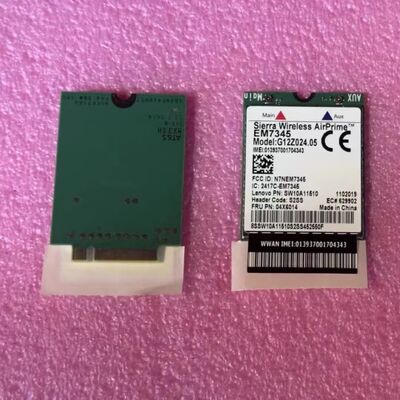

Sierra Wireless AirPrime EM7345 Datasheet


Sierra Wireless AirPrime EM7345 is a 4G LTE M.2 wireless communication module based on the Intel XMM 7160 platform. It is mainly used for mobile broadband in laptops, tablets and other devices, launched in 2014.


1. Core Specifications


  • Manufacturer: Sierra Wireless
  • Chipset Platform: Intel XMM 7160
  • Form Factor: M.2 2230 (PCIe), 52 pins
  • Dimensions: 42 × 30 × 2.3 mm
  • Power Supply: 3.4–4.2V
  • Operating Temperature: -10°C ~ +55°C


2. Network & Speed



LTE FDD Bands (Global, including mainstream Chinese bands)


  • B1 (2100MHz), B2 (1900MHz), B3 (1800MHz), B4 (AWS), B5 (850MHz), B7 (2600MHz), B8 (900MHz), B13/B17/B18/B19/B20


3G/2G


  • UMTS/HSPA+: 2100/1900/850/900/1700 MHz
  • GSM/GPRS/EDGE: Quad-band 850/900/1800/1900 MHz


Peak Data Rate


  • Downlink: 100 Mbps (LTE Cat.3)
  • Uplink: 50 Mbps


3. Interfaces & Features


  • Main Interface: USB 2.0
  • Others: SIM card interface, GPIO, I2C, UART, ADC
  • GNSS: Supports GPS, A-GPS, Glonass
  • Voice: No voice calling (data-only)
  • OS Support: Windows 7/8, Linux
  • Certifications: FCC, CE, GCF, PTCRB, etc.


4. Typical Applications


  • Built-in 4G WWAN for laptops (e.g. ThinkPad)
  • Mobile networking for industrial tablets, industrial PCs, POS terminals
  • IoT gateways, in-vehicle 4G data communication


5. Common FRU Part Numbers


  • 04X6014 (Universal version for ThinkPad)


6. Difference between EM7345 & EM7355


  • EM7345: Global version, supports B1/B3 (China Unicom/China Telecom 4G)
  • EM7355: North American version, does not support B1/B3
